Nail making machine

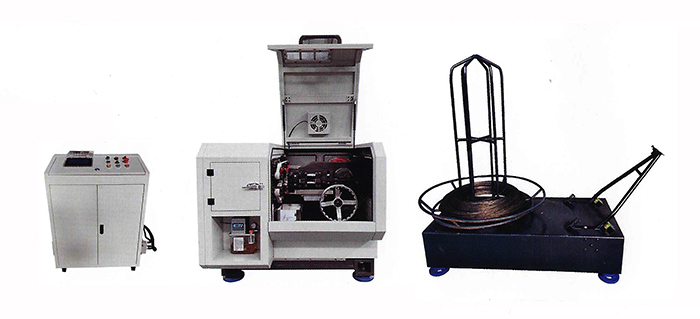

ZD series high-speed nail making machine

Model ZD-90 ZD-130
Length 25-90mm 50-150mm
Max speed 750/min(＜60mm) 550/min(＜100mm)
Diameter 1.6mm-3.5mm 2.5mm-5.0mm
Main motor power 5.5KW 7.5KW

Pay off rack motor power

2.2KW 2.2KW
Cabinet size 850*400*1050mm 850*400*1050mm
Pay off rack size 90*1500*450mm 90*1500*450mm
Main machine size 1900*1200*1200mm 2240*1300*1300mm
Weight 2600KG 3600KG

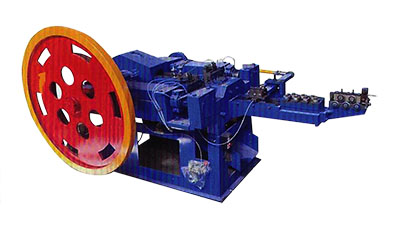

Z94 series nail making machine
Model
Z94-1C
Z94-2C
Z94-3C
Z94-4C
Z94-5C
Z94-6C
Max diameter (mm)
1.6
2.8
3.1
4.5
5
6.0
Min diameter (mm)
0.9
1.2
1.8
2.8
3.1
3.1
Max length (mm)
2.5
50
80
100
150
250
Min length (mm)
9
16
30
50
80
80

Speed pcs/minute

450
380
300
220
180
120
Output (KG)
20
50
75
100
150
300
Power (KW)
1.5
2.2
3
5.5
7.5
11
Weight
700KG
750KG
1100KG
1700KG
2200KG
2500KG
