Wire Drawing Machine

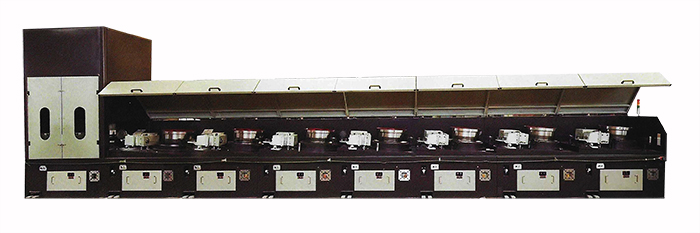

CNC Straight-Line Type Wire Drawing Machine

Model No. LZ-400 LZ-560
Capstan diameter 400mm 550mm
Max drawing times ≤14 ≤12
Max inlet wire diameter 4.0mm 6.5-8.0mm
Min outlet wire diameter 0.7mm 1.8mm

Power per group

11KW-15KW 22KW-37KW
Max outlet speed 17m/s 15m/s
Dimension per group 1500*1500*2000mm 2000*2000*2300mm
Weight per group 1200KG 2000KG

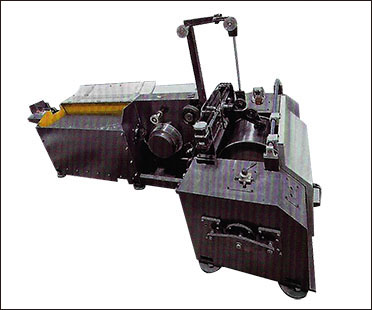

Medium-sized wet type wire drawing machine and metal spool type wire take up machine AIO

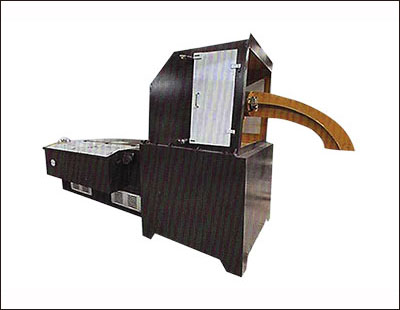

Wet type drawing and elephant nose trunk type take up machine AIO
Model No. Medium-sized wet type wire drawing machine and metal spool type wire take up machine AIO Wet type drawing and elephant nose trunk type take up machine AIO
Drawing times 10 13
Speed 12m/s 13m/s
Inlet wire diameter 4.3mm 2.5mm
Outlet wire diameter 2.0mm 1.0mm

Main motor power

45-75KW 18.5-37KW+5.5KW
Control method Inverter Control Inverter Control
Dimension 3800*1500*1800mm 4700*1400*1800mm
Weight 3000KG 3500KG
